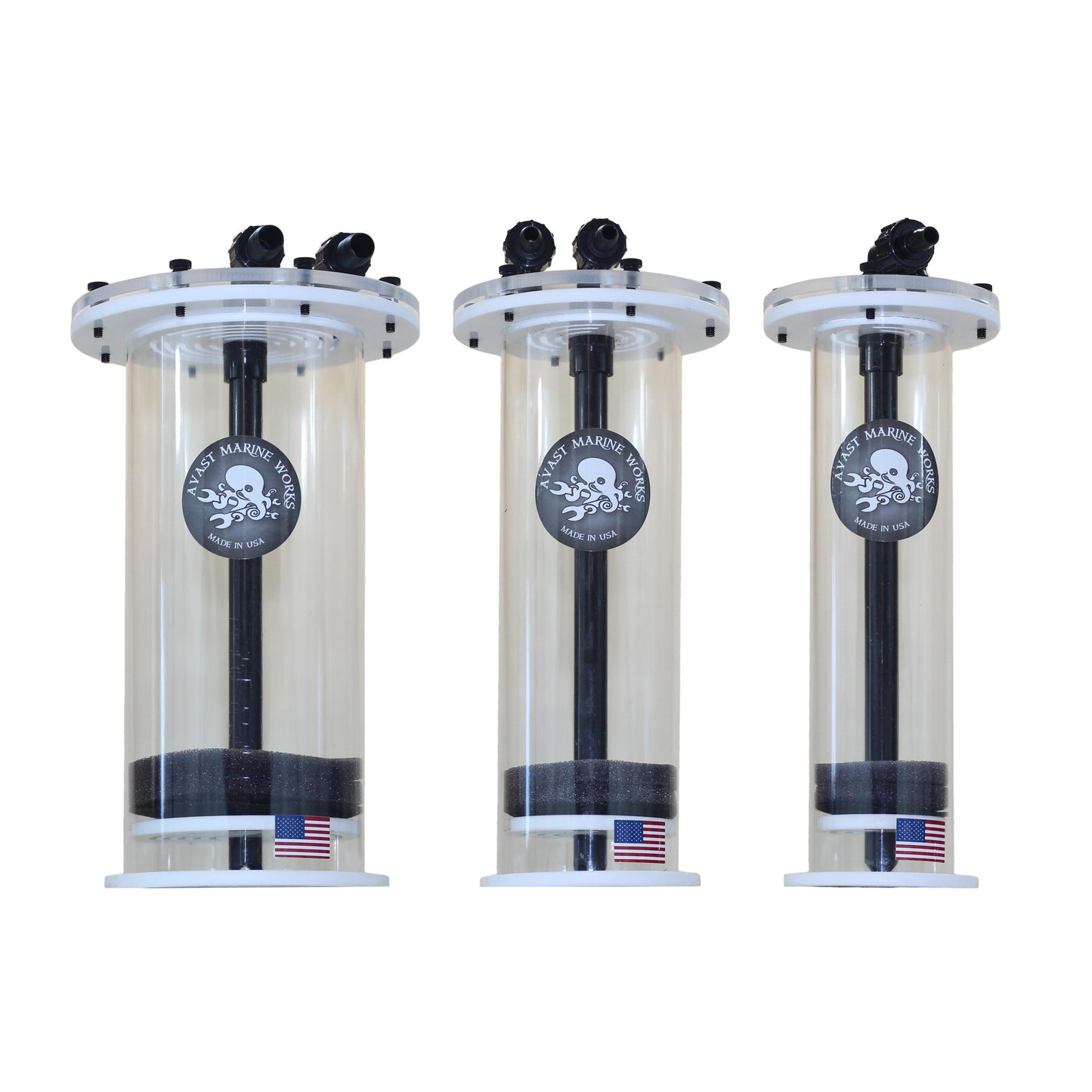

Fluidized Media Reactor

Our fluidized media reactor is designed to efficiently filter water with a variety of media types. The reactor includes 2 types of filter pads for retaining different media types such as activated carbon or granular ferric oxide (GFO).  The included mesh disks make this reactor an excellent choice for fluidizing larger grained carbon.  The mesh disks don't clog and are the correct size to keep larger size carbon and some GFO types contained above the disk.  If you're using very fine grained media such as ROX 0.8 carbon, then you'll want to use the foam pads that also ship with the reactor, or a mesh bag.  Also included is a flow control valve, 5 feet of soft tubing for pump attachment, and barbed union disconnect fittings.  The MR5, our small sized reactor, only has room for one union connection; the output fitting is a vertical barb fitting.  In all sizes, both barbed fittings are 1/2" NPT, threaded into the lid.

Click Here to Download the User Manual

Technical Data:

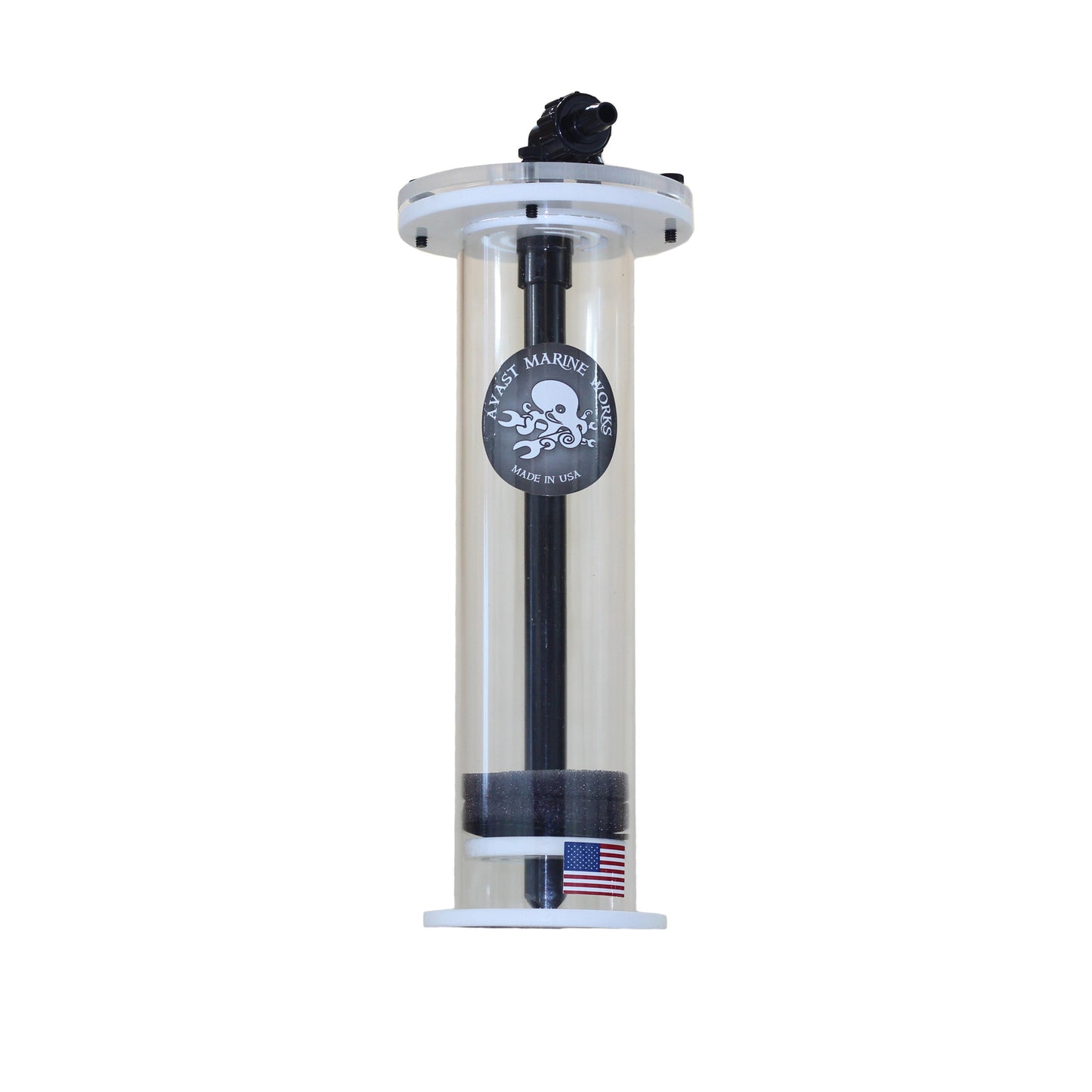

MR5

Footprint: 5.75" round, base 4.75"
Height: 17"
Media Capacity: 5 Cups
Input/Output: 1/2" barbed union fittings (union on input side only)
Recommended Pump: Sicce 1.0 or 1.5

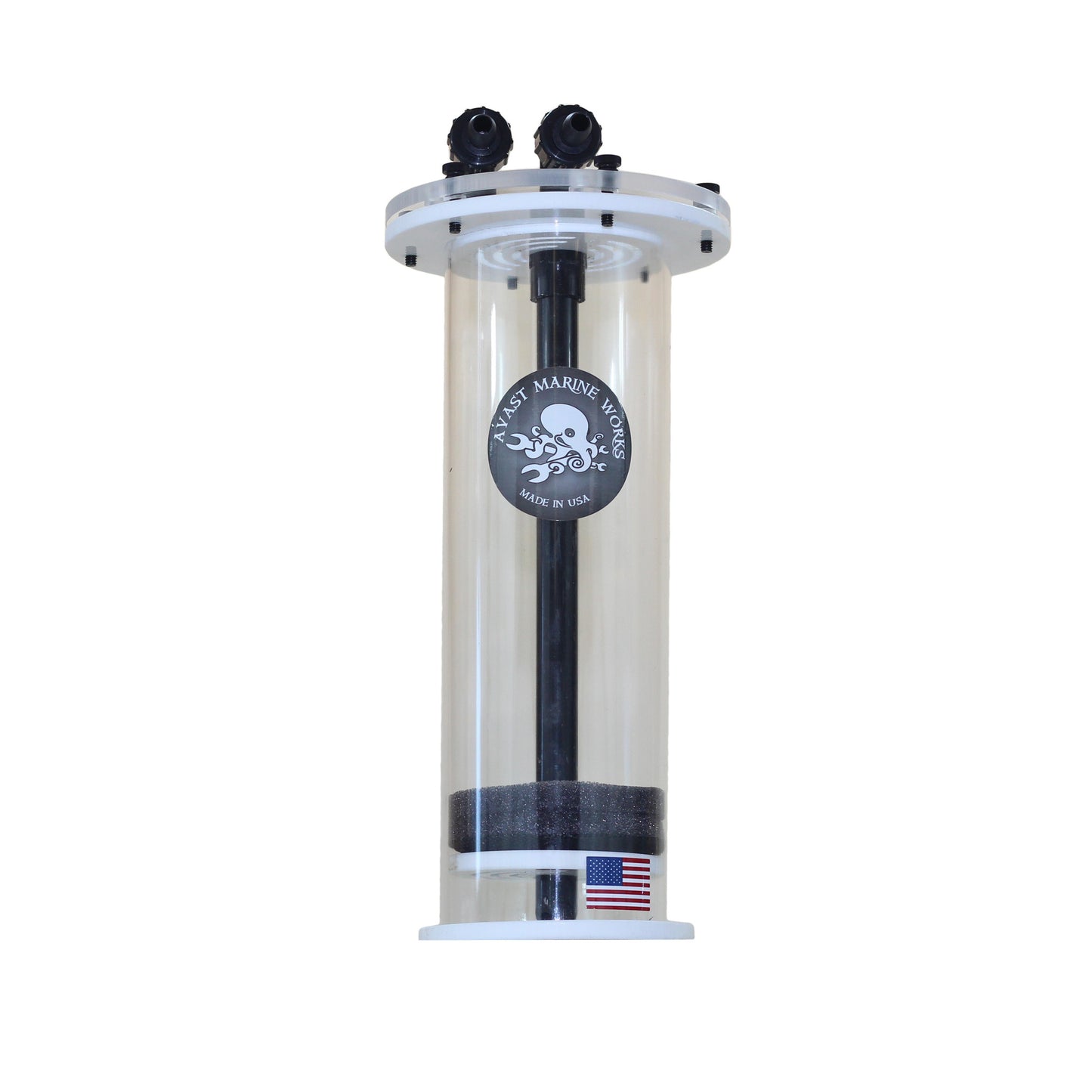

MR10

Footprint: 7" round, base 5.25"
Height: 17.5"
Media Capacity: 10 Cups
Input/Output: 1/2" barbed union fittings
Recommended Pump: Sicce 1.5 or 2.0

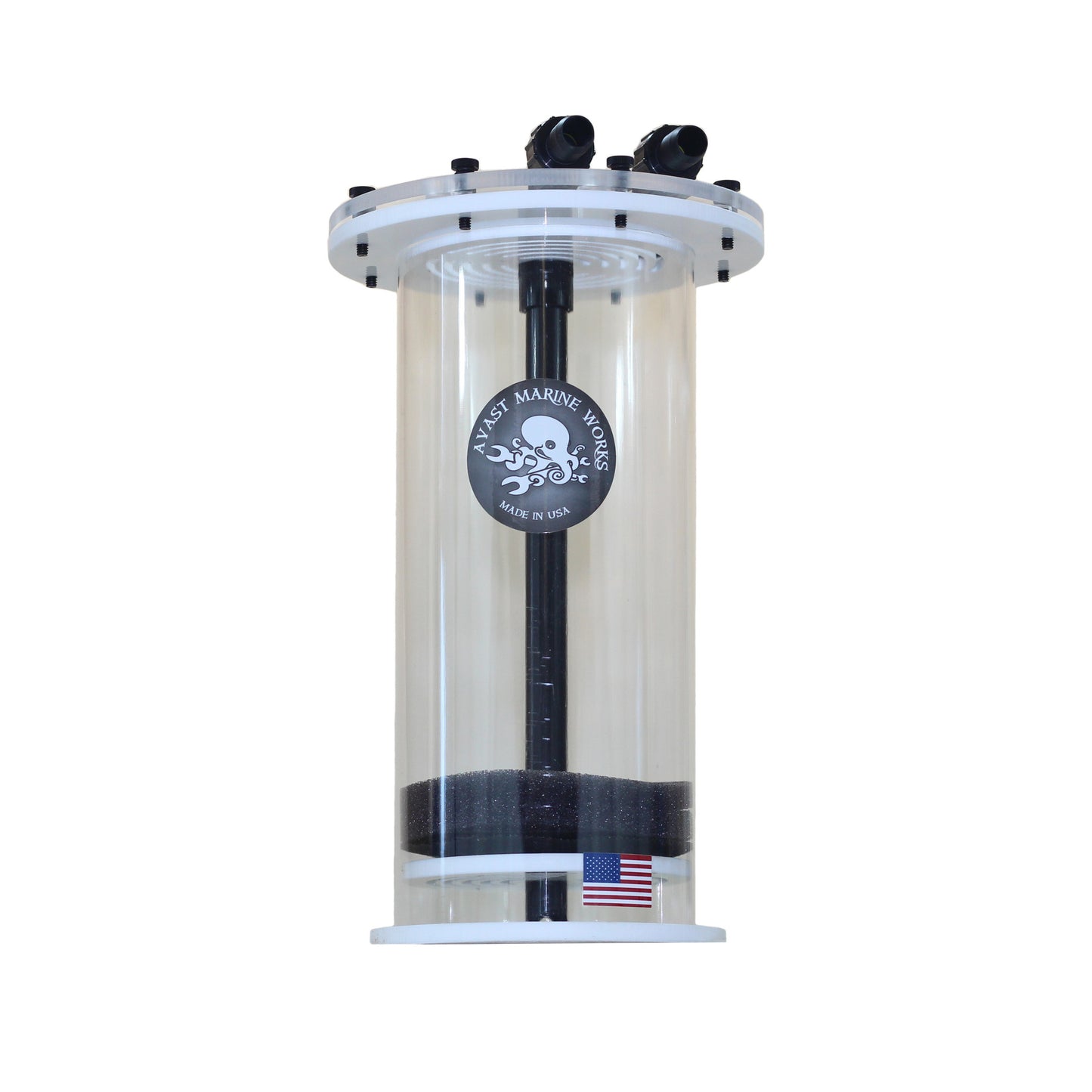

MR16

Footprint: 9" round, base 7.5"
Overall Height: 17.5"
Media Capacity: 16 Cups
Input/Output: 3/4" barbed union fittings
Recommended Pump: Sicce 2.0 or 3.0
